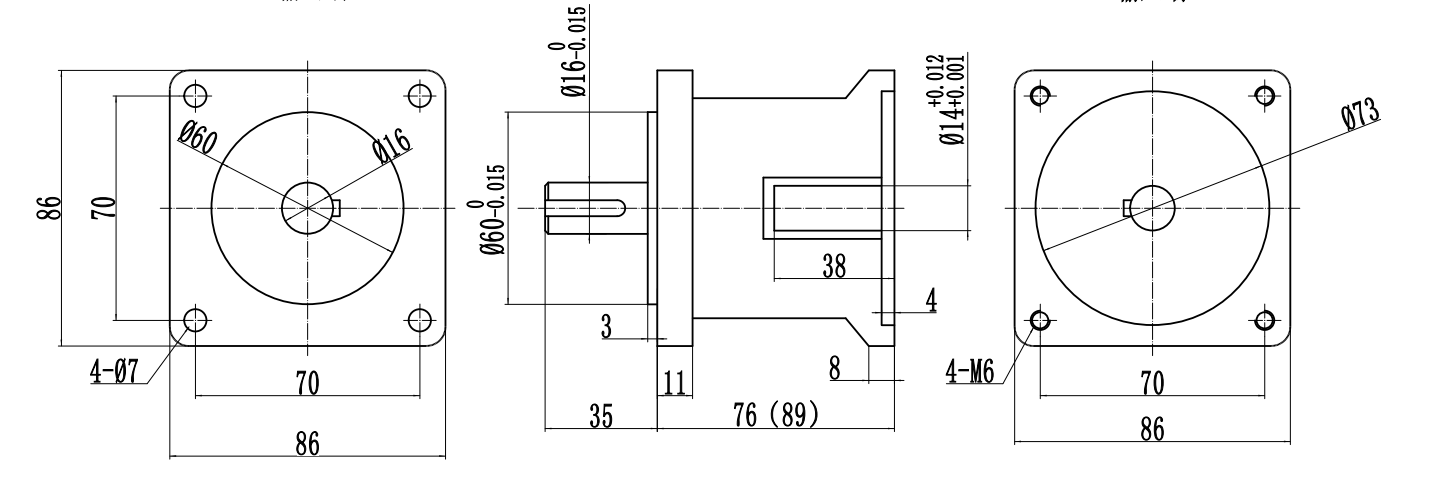

The Drawing and gear ratio of the Gear box

This gear box is for Nema 34 series stepper motor.

The gear ratio as below

First level  1: 3、4、5、6

Second level 1： 10.、16、20、24、36

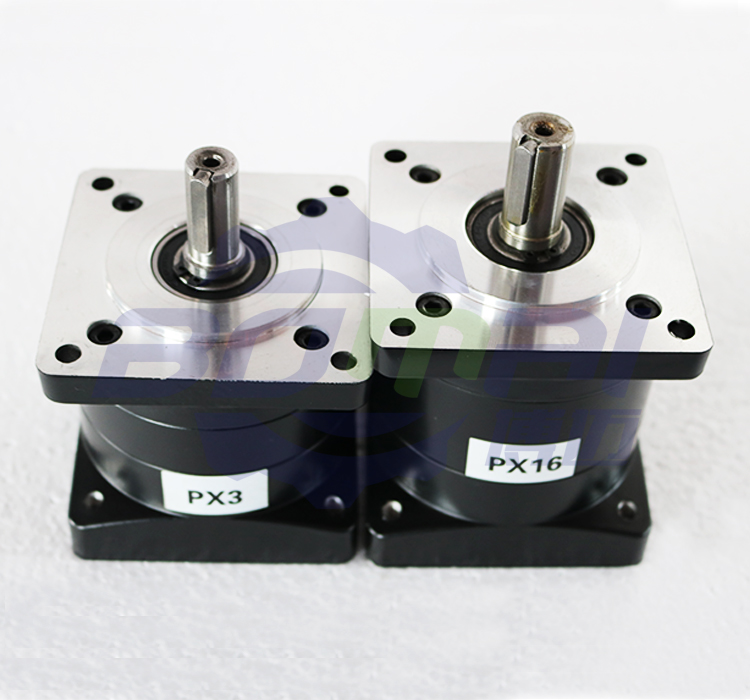

The picture of the Gear box
