NEMA 23 integrated step servo motor with driver
Motor Parameter:
Model | Step angle | Current | Resistance | Inductance | Holding torque | Motor length | Total length | Encoder resolution |
JSS57P2N | 1.8° | 4.2A | 0.5±10%Ω | 1.8±20%mH | 2.0N.m | 76mm | 108mm | 1000ppr |
| JSS57P3N | 1.8° | 4.0A | 0.7±10%Ω | 3.0±20%mH | 3.0N.m | 112mm | 144mm | 1000ppr |

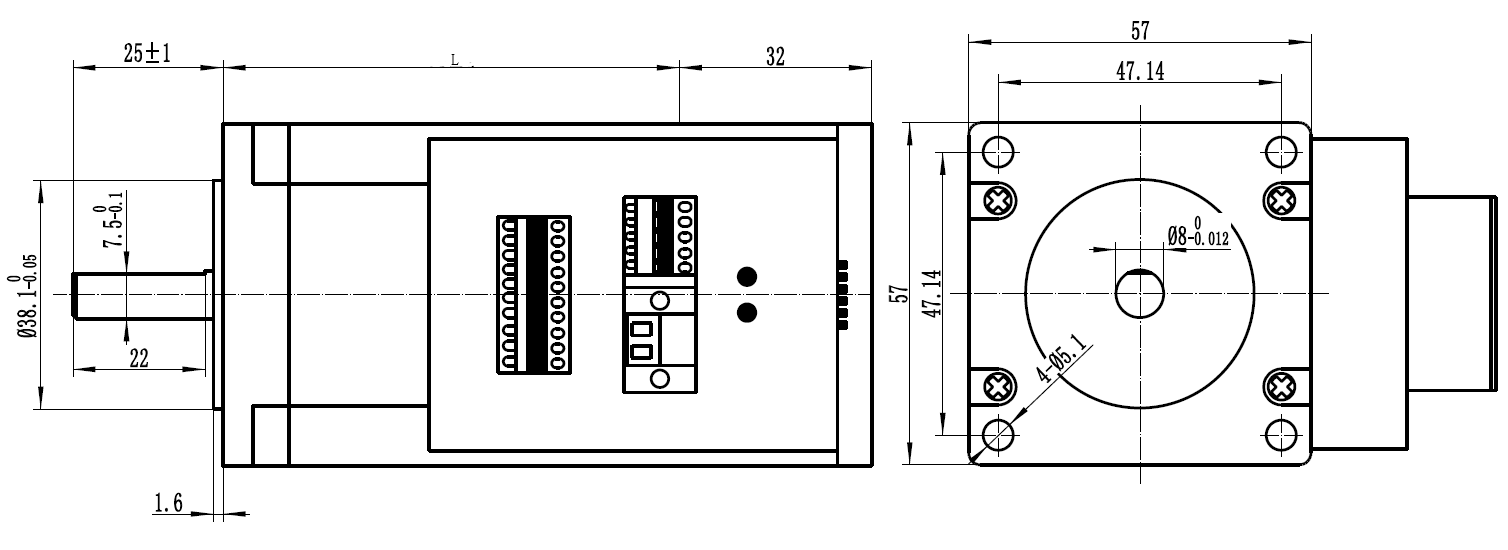

Motor dimension(mm):
Features:
1. Adopt advanced 32-bit motor control dedicated DSP chip and vector closed-loop
control technology;；
2. The default work is in closed loop mode, no loss of step, and it also supports working
in open loop mode.；
3. Increase the output torque and running speed of the motor;
4. The current level is intelligently adjusted according to the load, reducing the temperature rise of the motor, locking the current, and adjusting the closed-loop peak current.；
5. Adapt to various mechanical load conditions (including low-rigidity loads such as pulleys and pulleys) without adjusting the gain parameters;；
6. The position command smoothing filter can be set, the motor runs smoother, the vibration is lighter, and the acceleration and deceleration dynamic performance is improved.；
7. Zero-speed static capability without vibration after positioning；
8. Support single and double pulse input, pulse response frequency up to 200KHZ；
9. Support 15 fixed subdivisions, and support software to set any subdivision (200~65535)；
10. Support modbus RTU protocol on RS232, position and speed control controlled by communication；
11. Support monitoring of motor operating conditions, including speed, position deviation, bus voltage, operating current, etc.
12. Voltage range: DC+24V~48V；
13. With overcurrent, overvoltage, positional tolerance and other protection；
