NEMA 34 hybrid easy servo motor and dc driver with display HSS758
Motor Parameter:
Motor Model | Step angle | Current | Resistance | Inductance | Holding torque | Motor length | Total length | Suitable driver | Encoder resolution |
86HSE4N-BC38 | 1.8° | 6.0A | 0.45±10%Ω | 3.7±20%mH | 4.5 N.m | 82mm | 103mm | HSS86 | 1000ppr |
86HSE8N-BC38 | 1.8° | 6.0A | 0.44±10%Ω | 3.7±20%mH | 8.0 N.m | 118mm | 139mm | HSS86 | 1000ppr |
86HSE12N-BC38 | 1.8° | 6.0A | 0.45±10%Ω | 5.2±20%mH | 12.0 N.m | 156mm | 177mm | HSS86 | 1000ppr |

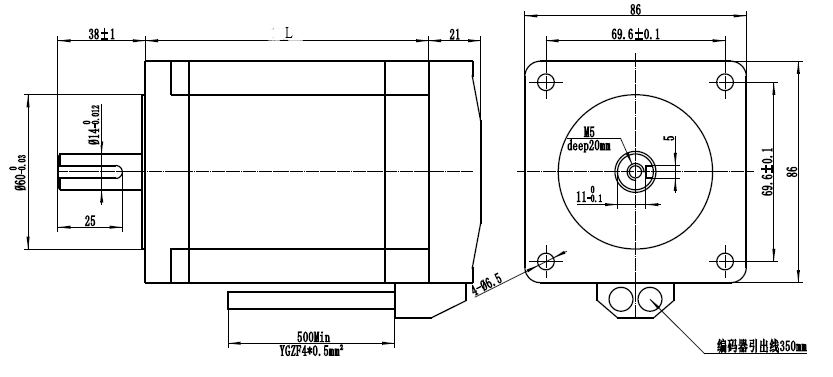

Motor Dimension (mm):
Driver HSS758
Features:
1. 32-bit DSP and vector closed-loop control technology
2. Without losing step, high accuracy in position
3. Improve the motor output torque and working speed
4. Variable current control technology, restrain motor temperature rise
5. Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no
need to adjust the gain parameter
6. Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7. The ability of zero speed static without vibration
8. Adapt to 2-phase 86(NEMA34) hybrid servo motor
9. Maximum step-pulse frequency 200KHZ
10. Micro step 400-65535 pulse/rev
11. Voltage range AC50V~80V
12. Over current, over voltage and over position protection
13. Six digital tube display, easy to set parameters and monitor the motor running state

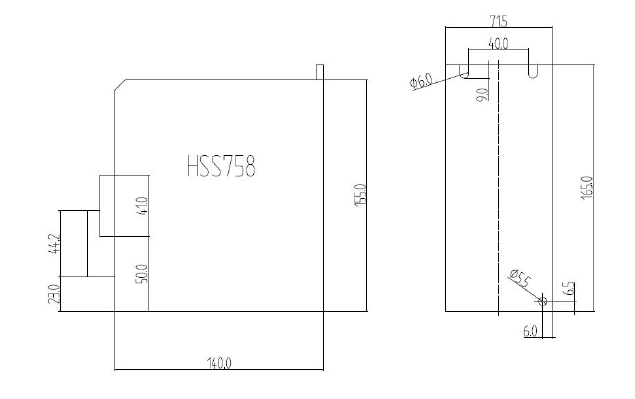

Driver Dimension(mm):
