42mm round burshless dc motor
Quick Detail:
General Specifications:
| 项目 Item | 规范 Specification |
| 接线方式 Widing type | 星形或三角形 Star/Delta |
| 电角度 Hall effect angle | 120 degree electrice angle |
| 轴跳动 Shaft runout | 0.025mm |
| 径向窜动 Radial play | 0.02mm/50g |
| 轴向窜动 End play | 0.08mm/50g |
| 最大径向力 Max radial force | 法兰方向 28N/20mm from the flange |
| 最大 轴向力 Max axial force | 10N |
| 绝缘等级 Insulation class | Class B |
| 防护等级 IP class | IP40 |
| 电气强度 Dielectric strength | 500VDC for one minute |
| 绝缘电阻 Insulation resistance | 100MΩmin 500VDC |
技术参数 （Electrical Specifications）
| 型号 Model | 额定电压 （VDC） Rated Voltage | 额定电流 （A） Rated Current | 额定功率 （W） Rated Power | 额定力矩（N.m） Rated Torque | 峰值力矩（N.m） Peak Torque | 额定转速（rpm） Rated Speed | 机身长（mm） Length | 重量 （kg） Mass |
| 42BLY40-140 | 12 | 1.1 | 10 | 0.024 | 0.072 | 4000 | 40 | 0.2 |
| 42BLY60-150 | 12 | 1.6 | 15 | 0.029 | 0.087 | 5000 | 60 | 0.3 |
| 42BLY80-150 | 12 | 2.7 | 25 | 0.048 | 0.144 | 5000 | 80 | 0.4 |
| 42BLY40-250 | 24 | 1.1 | 20 | 0.038 | 0.114 | 5000 | 40 | 0.2 |
| 42BLY60-260 | 24 | 1.6 | 30 | 0.048 | 1.144 | 6000 | 60 | 0.3 |
| 42BLY80-260 | 24 | 3.3 | 60 | 0.096 | 0.288 | 6000 | 80 | 0.4 |

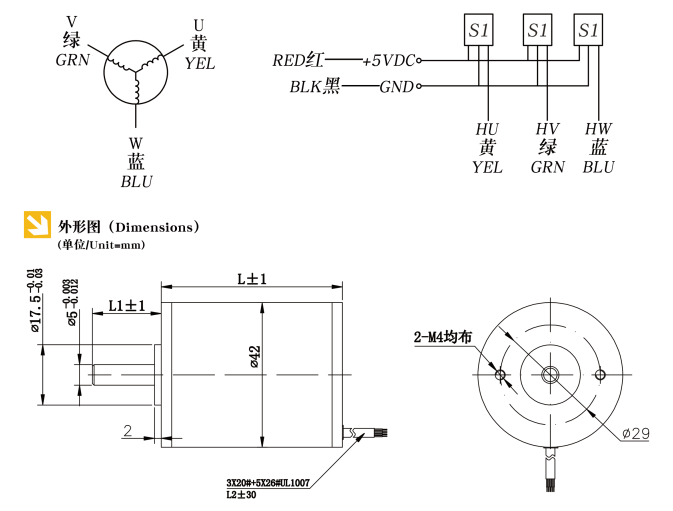

接线说明（Electrical Connection）
| 序号 Lead No. | 引线颜色Lead color | 线规 Lead gauge | 功能 Function | 详细描述 Description | ||||
| 1 | Red/红 | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black/黑 | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow/黄 | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green/绿 | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue蓝 | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow/黄 | PHASE U | MOTOR PHASE U | |||||
| 2 | Green/绿 | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue蓝 | PHASE W | MOTOR PHASE W | |||||
