80mm brushless dc motor
Quick Detail:
| 项目 Item | 规范 Specification |
| 接线方式 Widing type | 星形或三角形 Star/Delta |
| 电角度 Hall effect angle | 120 degree electrice angle |
| 轴跳动 Shaft runout | 0.025mm |
| 径向窜动 Radial play | 0.02mm/450g |
| 轴向窜动 End play | 0.08mm/450g |
| 最大径向力 Max radial force | 法兰方向 220N/20mm from the flange |
| 最大 轴向力 Max axial force | 60N |
| 绝缘等级 Insulation class | Class B |
| 防护等级 IP class | IP40 |
| 电气强度 Dielectric strength | 500VDC for one minute |
| 绝缘电阻 Insulation resistance | 100MΩmin 500VDC |
技术参数 （Electrical Specifications）
型号 Model | 额定电压 （VDC） Rated Voltage | 额定电流 （A） Rated Current | 额定功率 （W） Rated Power | 额定力矩 （N.m） Rated Torque | 峰值力矩 （N.m） Peak Torque | 额定转速 （rpm） Rated Speed | 机身长 （mm） Length | 重量 （kg） Mass |
| 80BL100-430 | 48 | 7 | 251 | 0.8 | 2.4 | 3000 | 105 | 1.6 |
| 80BL120-430 | 48 | 10.5 | 377 | 1.2 | 3.6 | 3000 | 125 | 2.5 |
| 80BL140-430 | 48 | 14 | 502 | 1.6 | 4.8 | 3000 | 145 | 3 |
| 80BL100-640 | 310 | 1.4 | 335 | 0.8 | 2.4 | 4000 | 105 | 1.6 |
| 80BL120-640 | 310 | 2.2 | 502 | 1.2 | 3.6 | 4000 | 125 | 2.5 |
| 80BL140-640 | 310 | 2.9 | 669 | 1.6 | 4.8 | 4000 | 145 | 3 |

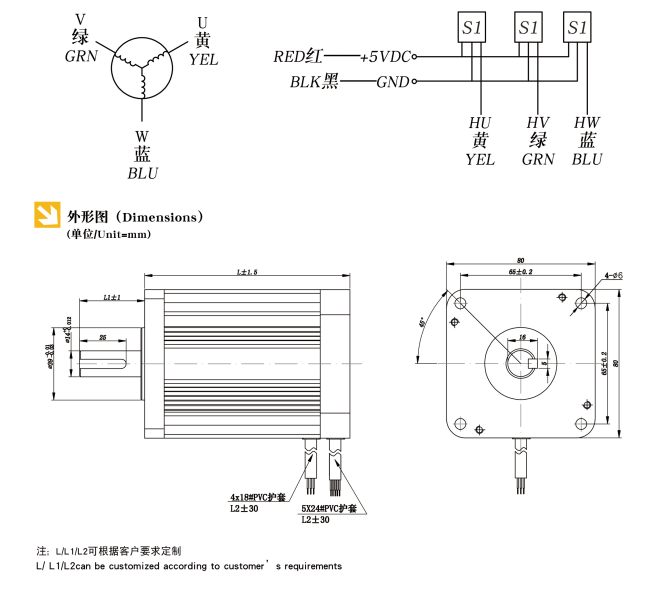

接线说明（Electrical Connection）
| 序号 Lead No. | 引线颜色Lead color | 线规 Lead gauge | 功能 Function | 详细描述 Description | ||||
| 1 | Red/红 | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black/黑 | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow/黄 | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green/绿 | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue蓝 | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow/黄 | PHASE U | MOTOR PHASE U | |||||
| 2 | Green/绿 | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue蓝 | PHASE W | MOTOR PHASE W | |||||
