DM860A
Features
1. Adoption of 32-bit DSP, pure sine wave subdivision technology
2. Low-noise, low-vibration and low temperature rising
3. Voltage 24-80VAC
4. With 8 stalls output current setting, current 2.4-7.2A
5. With 16 stalls microstep subdivision setting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ
8. Suitable for nema 34, nema 42 stepper motor current under 7.2A
Current selection
REF | Peak | SW1 | SW2 | SW3 |
2.00A | 2.40A | ON | ON | ON |
2.57A | 3.08A | OFF | ON | ON |
3.14A | 3.77A | ON | OFF | ON |
3.71A | 4.45A | OFF | OFF | ON |
4.28A | 5.14A | ON | ON | OFF |
4.86A | 5.83A | OFF | ON | OFF |
5.43A | 6.52A | ON | OFF | OFF |
6.00A | 7.20A | OFF | OFF | OFF |
Microstep selection
Pulse/REV | SW5 | SW6 | SW7 | SW8 |
Default | ON | ON | ON | ON |
800 | OFF | ON | ON | ON |
1600 | ON | OFF | ON | ON |
3200 | OFF | OFF | ON | ON |
6400 | ON | ON | OFF | ON |
12800 | OFF | ON | OFF | ON |
25600 | ON | OFF | OFF | ON |
51200 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
40000 | OFF | OFF | OFF | OFF |

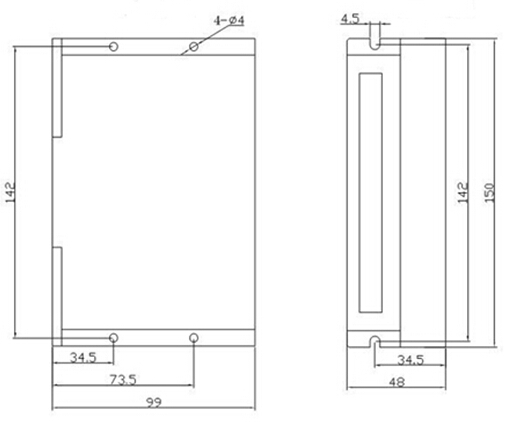

Mechanical Dimension(mm)
